Configure Karnak Logging with Logback

Karnak offers the possibility of injecting your own log configuration to customize how logs are generated and stored.

The logging system used by Karnak is Logback. For detailed information about Logback configuration, see the official manual.

Available Variables

The following variables can be used in your custom Logback configuration file to capture specific de-identification context:

These variables are set (as MDC values, used with %X{name} in a pattern) while a profile is applied to an instance; the Deidentify* / TagMorphing* values, ProjectName, ProfileName and ProfileCodenames are available on the DEBUG event emitted with the CLINICAL marker once the profile has been applied. See the clinical logs example below.

Inject the Logback Configuration File

Using Docker

Set the environment variable LOGBACK_CONFIGURATION_FILE with the path to your Logback configuration file. This will override the default log configuration.

Example:

If you create a custom configuration file named my-logback.xml in the same directory as your docker-compose.yml:

1. Create a volume to mount the file inside the Karnak container
2. Define the LOGBACK_CONFIGURATION_FILE environment variable with the container path

services:
  karnak:
    container_name: karnak
    image: nroduit/karnak:latest
    volumes:
      - ./my-logback.xml:/logs/my-logback.xml
    environment:
      LOGBACK_CONFIGURATION_FILE: /logs/my-logback.xml

Using Java

If you run Karnak directly from the JAR file, add the following parameter at startup: -Dlogging.config=my-logback.xml

Default Logback Configuration

The default logback configuration file selects its appenders from the active Spring profile:

Standard installation (Docker or JAR)

• Logs everything at the INFO level to the console (standard output) only; no log file is written, so no writable volume is needed and the Docker logs can be read with docker logs or collected by your log driver
• Log levels can be adjusted with the standard Spring logging.level.* properties (e.g. the LOGGING_LEVEL_ORG_KARNAK=DEBUG environment variable)

Portable distribution

• Logs the org.karnak packages at the INFO level to the console and to the rolling file logs/karnak.log in the extracted directory
• The rotation is controlled by the KARNAK_LOGS_MAX_FILE_SIZE (default 50MB), KARNAK_LOGS_MIN_INDEX (default 1) and KARNAK_LOGS_MAX_INDEX (default 10) variables set in run.cfg

Clinical logs

Each de-identification or tag-morphing operation emits a DEBUG event carrying the CLINICAL marker and the variables above. The default configuration does not write these events to a dedicated file. To keep an audit trail, add an appender filtered on the marker to your custom configuration and enable the DEBUG level for the org.karnak package:

<configuration>
  <appender name="CLINICAL_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
    <file>logs/clinical.log</file>
    <rollingPolicy class="ch.qos.logback.core.rolling.FixedWindowRollingPolicy">
      <fileNamePattern>logs/clinical_%i.log</fileNamePattern>
      <minIndex>1</minIndex>
      <maxIndex>10</maxIndex>
    </rollingPolicy>
    <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
      <maxFileSize>50MB</maxFileSize>
    </triggeringPolicy>
    <!-- Keep only the events carrying the CLINICAL marker -->
    <filter class="ch.qos.logback.core.filter.EvaluatorFilter">
      <evaluator class="ch.qos.logback.classic.boolex.OnMarkerEvaluator">
        <marker>CLINICAL</marker>
      </evaluator>
      <onMismatch>DENY</onMismatch>
      <onMatch>NEUTRAL</onMatch>
    </filter>
    <encoder>
      <pattern>%d SOPInstanceUID_OLD=%X{SOPInstanceUID} SOPInstanceUID_NEW=%X{DeidentifySOPInstanceUID} SeriesInstanceUID_OLD=%X{SeriesInstanceUID} SeriesInstanceUID_NEW=%X{DeidentifySeriesInstanceUID} ProjectName=%X{ProjectName} ProfileName=%X{ProfileName} ProfileCodenames=%X{ProfileCodenames}%n</pattern>
    </encoder>
  </appender>

  <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
    <!-- Exclude the clinical events from the console -->
    <filter class="ch.qos.logback.core.filter.EvaluatorFilter">
      <evaluator class="ch.qos.logback.classic.boolex.OnMarkerEvaluator">
        <marker>CLINICAL</marker>
      </evaluator>
      <onMismatch>NEUTRAL</onMismatch>
      <onMatch>DENY</onMatch>
    </filter>
    <encoder>
      <pattern>%d{HH:mm:ss.SSS} [%thread] %-5level %logger{36} - %msg%n</pattern>
    </encoder>
  </appender>

  <logger name="org.karnak" level="DEBUG" />

  <root level="INFO">
    <appender-ref ref="STDOUT" />
    <appender-ref ref="CLINICAL_FILE" />
  </root>
</configuration>

With Docker, mount a writable volume for the logs folder (the image runs as a non-root user, so mount it at a path such as /tmp/logs or make the target directory writable).

Karnak Profile YAML Structure

The Profiles page allows you to manage de-identification profiles for your projects in the Karnak interface. This page explains the structure of these profiles and how to create or modify them using YAML files.

Overview

A profile defines how DICOM attributes should be modified during de-identification or tag morphing. It consists of one or more profile elements, each specifying:

• Which DICOM attributes to target
• What action to apply (e.g., remove, replace, keep)
• Optional conditions for applying the action

Important behavior:

• Profile elements are applied sequentially in the order they appear in the YAML file
• Only the first applicable profile element modifies each DICOM attribute
• Once modified, subsequent profile elements won’t affect that attribute

Profile Metadata

Metadata fields help identify and manage your profiles. While optional, we recommend defining at least name and version for clarity.

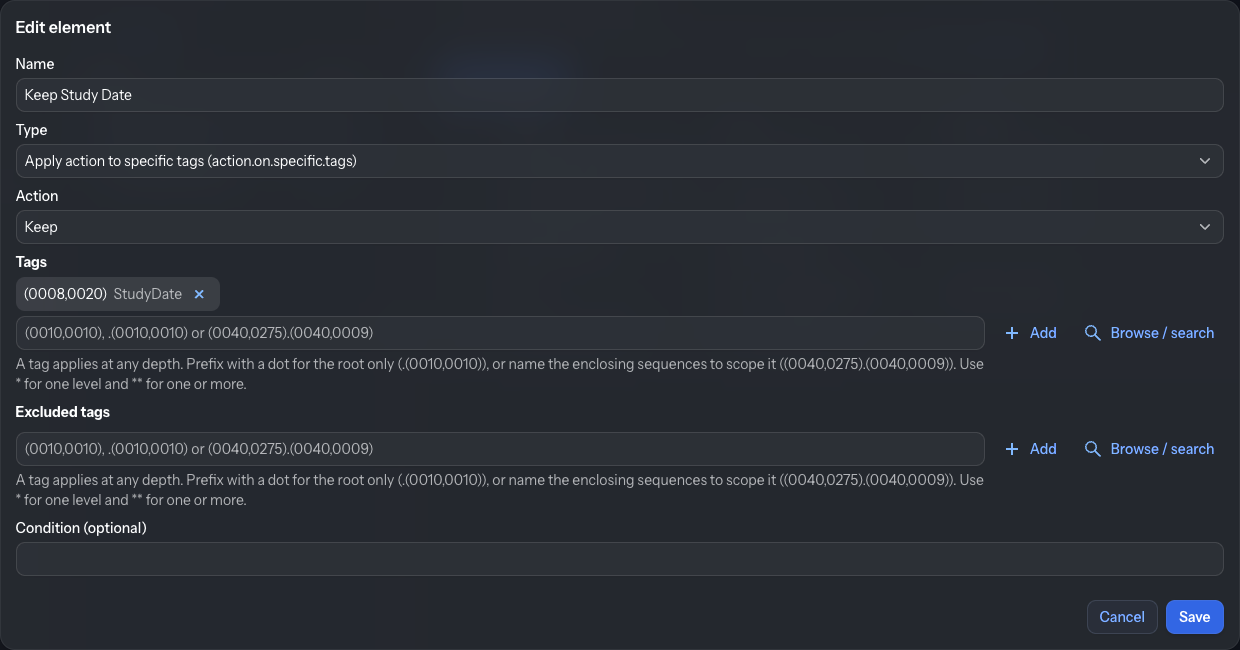

Profile Element Structure

Each profile element defines a specific de-identification rule.

Required Fields

Optional Fields

DICOM Tag Formats

Tags can be specified in multiple formats:

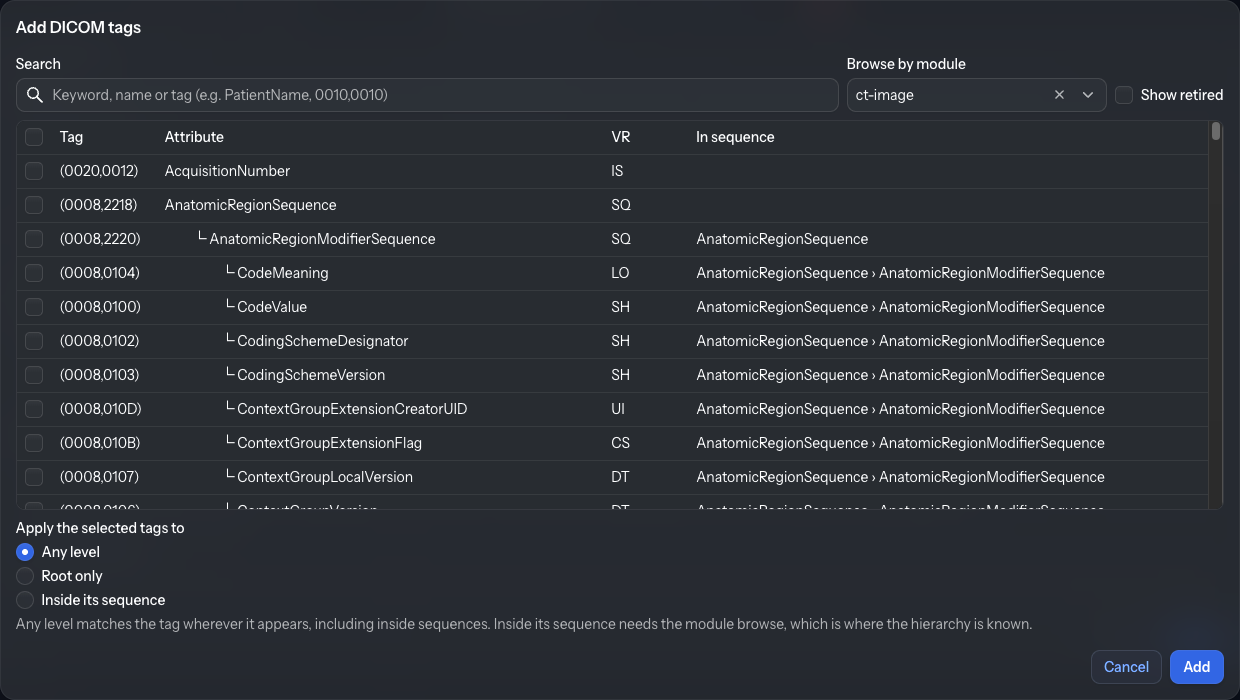

A tag written in one of these formats matches the attribute wherever it appears in the instance: at the top level and inside the items of any sequence.

Tag Paths (Sequences)

To restrict a tag to a given location, write a dot-separated path: the last segment is the tag itself and the preceding segments are the sequences enclosing it. A leading dot anchors the path to the top-level dataset; without it, the named sequences may themselves be nested anywhere.

Each segment accepts the X wildcard digits (e.g., (0040,0275).0040XXXX). When several entries of the same element match a tag, a path takes precedence over a plain tag, and the most specific path wins. Paths are accepted by tags and excludedTags of the elements working on user-defined tags, and by Add new tags (literal paths only).

Conditions

Add optional conditions to control when a profile element applies. The expression is evaluated for each matching tag.

For complete syntax and examples, see the Conditions page.

Basic DICOM Profile

The Basic DICOM Profile is the DICOM standard’s reference profile for removing Personally Identifying Information (PII) from DICOM files. The conditions to apply rules for a specific tag depend on its attribute type (Type 1, Type 2, etc.) based on the Information Object Definition (IOD). Karnak automatically determines the attribute type for each tag during de-identification.

Why Use It?

• Removes all attributes containing identifiable patient information
• Maintains DICOM conformance
• Industry-standard approach to de-identification

How to Include

Reference it by codename in your profile:

- name: "DICOM basic profile"
  codename: "basic.dicom.profile"

Complete Example

Below is a minimal but complete profile that applies only the Basic DICOM Profile:

name: "Dicom Basic Profile"
version: "1.0"
minimumKarnakVersion: "0.9.2"
defaultIssuerOfPatientID:
profileElements:
  - name: "DICOM basic profile"
    codename: "basic.dicom.profile"

Keep, Remove or Replace DICOM Tags

This page describes profile elements that apply actions to DICOM tags. These actions allow you to selectively keep, remove, or add tags during de-identification.

Actions on specific tags

This profile element applies an action to a tag or group of tags defined by the user.

Required Parameters

Optional Parameters

Example

In this example, all tags starting with 0028 will be removed except (0028,1199) which will be kept.

- name: "Remove tags"
  codename: "action.on.specific.tags"
  action: "X"
  tags:
    - "(0028,xxxx)"
  excludedTags:
    - "(0028,1199)"

- name: "Keep tags 0028,1199"
  codename: "action.on.specific.tags"
  action: "K"
  tags:
    - "0028,1199"

Actions on private tags

This profile element applies an action to private tags or groups of private tags defined by the user. This action is only applied if the tag is private (where the group number is odd).

Required Parameters

Optional Parameters

Example

In this example, all tags starting with 0009 will be kept and all other private tags will be removed.

- name: "Keep private tags starting with 0009"
  codename: "action.on.privatetags"
  action: "K"
  tags:
    - "(0009,xxxx)"

- name: "Remove all private tags"
  codename: "action.on.privatetags"
  action: "X"

Replace UIDs

This profile element applies a UID action to a list of tags defined by the user. It is typically used to generate new, consistent UIDs for the UID attributes that the Basic DICOM profile does not cover, or to remove or empty them.

Required Parameters

Optional Parameters

Example

In this example, the Frame of Reference UID and every Referenced SOP Instance UID (at any depth, including inside sequences) are replaced by new UIDs derived from the project secret, so that the references between the de-identified instances remain consistent.

- name: "New UIDs for the references"
  codename: "replace.uid"
  action: "U"
  tags:
    - "(0020,0052)"
    - "(0008,1155)"

Add new tags

This profile element adds a tag if it is not already present in the instance. This action is ignored if the tag already exists.

Required Parameters

Optional Parameters

Behavior

When the tag is not present:

• The tag will be added by this action
• Further profile element actions that match this tag won’t be applied

When the tag already exists:

• The add action is ignored
• A subsequent profile element action can be applied to that tag

Adding a tag inside a sequence:

The tag can be written as a literal path naming every enclosing sequence, e.g. (0040,0275).(0040,0009) (wildcards such as *, ** or X are not allowed, and the path is always read from the top-level dataset). A missing or empty sequence is created with one item; when the sequence holds several items, each of them receives the attribute. Such an element is applied once all the other profile elements have been applied, so the added value is not modified by them.

Use Case

This feature is especially useful when applying masks to non-compliant SOPs by using the Burned In Annotation attribute. See the Cleaning Data Pixel Exceptions page for a complete example.

Example

In this example, we add the optional tag Recognizable Visual Features (0028,0302).

- name: "Add Recognizable Visual Features tag"
  codename: "action.add.tag"
  arguments:
    value: "YES"
  tags:
    - "(0028,0302)"

Add new private tags

This profile element adds a private tag if it is not already present in the instance. This action is ignored if the tag already exists or if there is a collision with a different Private Creator ID.

Required Parameters

Optional Parameters

PrivateCreator Management

The privateCreator argument is optional but recommended for consistency.

When the PrivateCreatorID tag does not exist:

• The privateCreator argument must be specified
• The PrivateCreatorID tag will be created automatically

When the PrivateCreatorID tag exists:

• If privateCreator is not specified: The tag will be added as part of the existing PrivateCreatorID
• If privateCreator is specified: The existing value is matched against the argument
  • If they match: The new tag is added
  • If they don’t match: A collision occurs and the tag is not added (a warning is logged)

Example

In this example, we add a private tag containing the value “sample-project” linked to the PrivateCreatorID “KARNAK-PRIVATE”.

- name: "Add Private Tag"
  codename: "action.add.private.tag"
  arguments:
    value: "sample-project"
    vr: "LO"
    privateCreator: "KARNAK-PRIVATE"
  tags:
    - "(0057,1000)"

What happens:

• If the PrivateCreatorID tag (0057,0010) doesn’t exist, it’s created with the value “KARNAK-PRIVATE” and the tag (0057,1000) is added
• If (0057,0010) exists with the value “KARNAK-PRIVATE”, the tag (0057,1000) is added
• If (0057,0010) exists with a different value, the tag (0057,1000) is not added to prevent linking it to the wrong PrivateCreatorID

Complete Profile Examples

Example 1: Basic De-identification Profile

This profile applies the following operations in order:

1. Remove tags matching (0008,00XX) and (0010,00XX) except (0008,0008) and (0008,0013)
2. Keep the previously excluded tags specifically (so they won’t be removed by subsequent profile elements)
3. Remove all private tags
4. Apply the Basic DICOM Profile to all remaining tags

name: "De-identification profile"
version: "1.0"
minimumKarnakVersion: "0.9.2"
defaultIssuerOfPatientID:
profileElements:
  - name: "Remove tags"
    codename: "action.on.specific.tags"
    action: "X"
    tags:
      - "(0008,00XX)"
      - "0010,00XX"
    excludedTags:
      - "0008,0008"
      - "0008,0013"

  - name: "Keep tags"
    codename: "action.on.specific.tags"
    action: "K"
    tags:
      - "0008,0008"
      - "0008,0013"

  - name: "Remove all private tags"
    codename: "action.on.privatetags"
    action: "X"

  - name: "DICOM basic profile"
    codename: "basic.dicom.profile"

Example 2: Conditional Profile with Private Tags

This profile demonstrates conditional actions and preserving specific private tags:

1. Keep Study Description tag only if it contains ‘R2D2’
2. Keep the Philips PET private group
3. Apply the Basic DICOM Profile

name: "Profile Example"
version: "1.0"
minimumKarnakVersion: "0.9.7"
profileElements:
  - name: "Keep StudyDescription tag according to a condition"
    codename: "action.on.specific.tags"
    condition: "tagValueContains(#Tag.StudyDescription, 'R2D2')"
    action: "K"
    tags:
      - "(0008,1030)"

  - name: "Keep Philips PET Private Group"
    codename: "action.on.privatetags"
    action: "K"
    tags:
      - "(7053,xx00)"
      - "(7053,xx09)"

  - name: "DICOM basic profile"
    codename: "basic.dicom.profile"

Shift or Redact DICOM Dates and Times

This profile element applies a specific action to tags containing dates. These actions can only be applied to the following Value Representations: Age String (AS), Date (DA), Date Time (DT), and Time (TM).

Parameters

Required parameters

• name: Description of the action applied
• codename: Must be set to action.on.dates
• option: The action to be applied (see options below)
• arguments: Additional parameters depending on the chosen option

Optional parameters

• condition: Defines a condition to evaluate whether this profile element should be applied to the DICOM instance
• tags: List of tags the action should be applied to. If not specified, the action applies to all tags with AS, DA, DT, or TM Value Representation
• excludedTags: List of tags that will be ignored by this action

Available Options

The option parameter can have one of the following values:

• shift - Apply a fixed time shift
• shift_range - Apply a random time shift within specified ranges
• shift_by_tag - Apply a shift based on values from another DICOM tag
• shift_from_api - Apply a shift based on values from an external API
• date_format - Remove date precision (day and/or month)

Shift Option

The shift option applies a fixed shift to dates using the following required arguments:

• seconds: Integer representing the number of seconds for the shift operation
• days: Integer representing the number of days for the shift operation

Behavior by Value Representation:

• Age String (AS): The days are added to the existing value (converted to the unit of the age: years, months, weeks or days); seconds are ignored
• Date (DA): The days are subtracted from the existing value; seconds are ignored
• Time (TM): The seconds are subtracted from the existing value; days are ignored
• Date Time (DT): Days and seconds are subtracted from the existing value

Example

This example shifts all tags starting with 0010 that have AS, DA, DT, or TM Value Representation by 30 seconds and 10 days:

- name: "Shift Date"
  codename: "action.on.dates"
  arguments:
    seconds: 30
    days: 10
  option: "shift"
  tags:
    - "0010,XXXX"

Shift Range Option

The shift_range option applies a random shift to dates within user-defined ranges.

Arguments

• max_seconds (required): Upper bound for the number of seconds to shift
• max_days (required): Upper bound for the number of days to shift
• min_seconds (optional): Lower bound for the number of seconds to shift (defaults to 0)
• min_days (optional): Lower bound for the number of days to shift (defaults to 0)

The random operation is deterministic and reproducible based on the patient and project.

Example

This example shifts all tags starting with 0008,002 that have AS, DA, DT, or TM Value Representation randomly within a range of 0 to 60 seconds and 50 to 100 days:

  - name: "Shift Range Date"
    codename: "action.on.dates"
    arguments:
      max_seconds: 60
      min_days: 50
      max_days: 100
    option: "shift_range"
    tags:
      - "0008,002X"

Date Format Option

The date_format option removes date precision by deleting specific date components.

This action can only be applied to Date (DA) and Date Time (DT) Value Representations.

Arguments

• remove: Specifies which date components to remove
  • day: Removes the day information, replacing it with 01
  • month_day: Removes both month and day information, replacing them with 01 for each

Example: Remove Day

This example removes the day from all tags starting with 0008,003 that have DA or DT Value Representation:

  - name: "Date format"
    codename: "action.on.dates"
    arguments:
      remove: "day"
    option: "date_format"
    tags:
      - "0008,003X"

For example, if the value contained in the tag is 20230512, the output value will be 20230501.

Shift By Tag Option

The shift_by_tag option applies a shift based on values contained in other DICOM tags.

Arguments

Both arguments are optional; an omitted argument applies no shift on its unit:

• seconds_tag: Tag containing the number of seconds for the shift operation
• days_tag: Tag containing the number of days for the shift operation

The referenced tags are read from the original values of the instance (before de-identification), from the dataset being visited outwards, so a date nested in a sequence can use shift values stored at the study level.

Example

This example shifts all tags starting with 0010 that have AS, DA, DT, or TM Value Representation by the number of days stored in the private tag (0015,0011):

- name: "Shift Date By Tag"
  codename: "action.on.dates"
  arguments:
    days_tag: "(0015,0011)"
  option: "shift_by_tag"
  tags:
    - "0010,XXXX"

Shift From API Option

The shift_from_api option applies a shift based on values from an external API call.

Arguments

• url (required): URL of the API to query. Can contain runtime parameters (see URL and Body Arguments).
• daysPath (required): JSON path to the number of days for the shift operation, using JSON Pointer syntax. Empty string means the entire response value will be used.
• secondsPath (optional): JSON path to the number of seconds for the shift operation, using JSON Pointer syntax. Empty string means the entire response value will be used.
• method (optional): HTTP method: GET or POST. Defaults to GET.
• body (optional): Request body for POST requests in JSON format. Can contain runtime parameters (see URL and Body Arguments).
• authConfig (optional): Identifier of an existing Authentication Configuration for authenticating the call. No authentication used if not specified.

The runtime parameters of url and body are evaluated against the original values of the instance (before de-identification). If the API cannot be reached, returns an error, or the response holds no integer at daysPath (or secondsPath), the transfer of the instance is aborted.

Example

This example shifts all tags starting with 0010 that have AS, DA, DT, or TM Value Representation by the number of days and seconds contained in the response of the API call:

- name: "Shift Date From API"
  codename: "action.on.dates"
  option: "shift_from_api"
  arguments:
    daysPath: "/shift/days"
    secondsPath: "/shift/seconds"
    url: "http://example.com/{{getString(#Tag.PatientID)}}/shift"
  tags:
    - "0010,XXXX"

Complete Profile Example

This example demonstrates a complete de-identification profile that applies multiple date actions in sequence:

1. Shift Range: Randomly shift tags matching (0008,003X) and (0008,0012) (except (0008,0030) and (0008,0032)) by 0 to 60 seconds and 10 to 50 days
2. Date Format: Remove month and day from tags (0008,0023) and (0008,0021)
3. Fixed Shift: Shift tags matching (0010,XXXX) (except (0010,0010)) by 30 seconds and 10 days
4. Basic Profile: Apply the Basic DICOM Profile to all remaining tags

name: "De-identification profile"
version: "1.0"
minimumKarnakVersion: "0.9.2"
defaultIssuerOfPatientID:
profileElements:
  - name: "Shift Range Date with arguments"
    codename: "action.on.dates"
    arguments:
      max_seconds: 60
      min_days: 10
      max_days: 50
    option: "shift_range"
    tags:
      - "0008,0012"
      - "0008,003X"
    excludedTags:
      - "0008,0030"
      - "0008,0032"

  - name: "Date Format"
    codename: "action.on.dates"
    arguments:
      remove: "month_day"
    option: "date_format"
    tags:
      - "0008,0023"
      - "0008,0021"

  - name: "Shift Date with arguments"
    codename: "action.on.dates"
    arguments:
      seconds: 30
      days: 10
    option: "shift"
    tags:
      - "0010,XXXX"
    excludedTags:
      - "0010,1010"

  - name: "DICOM basic profile"
    codename: "basic.dicom.profile"

SpEL Expressions for DICOM Tag Values

Actions on specific tags

This profile element applies an expression to a tag or a group of tags defined by the user. An expression is based on Spring Expression Language (SpEL) and returns a value or an action according to a certain condition.

Parameters

This profile element requires the following parameters:

Expression Context

The expression is contained in the expr argument. When executed, it can either:

• Return an action to be executed
• Return a null value (does nothing and moves to the next profile element)

Available Variables

The following variables are available in the expression context, containing information about the current attribute:

Constants

Constants improve readability and reduce errors:

Utility Functions

The following utility functions help work with tags:

The values read by the expression (stringValue, getString) are the original values of the instance, before any profile element modified it.

Available Actions

Actions are defined as functions and set the operation to perform on the current tag:

Examples

Conditional replacement based on tag value and type

Replace the Patient Name with the Institution Name if the current value is ‘John’, otherwise keep it unchanged:

  - name: "Expression"
    codename: "expression.on.tags"
    arguments:
      expr: "stringValue == 'John' and tag == #Tag.PatientName? Replace(getString(#Tag.InstitutionName)) : Keep()"
    tags:
      - "(xxxx,xxxx)"

Remove tags with undefined values

Remove tags with ‘UNDEFINED’ value, otherwise keep them:

  - name: "Expression"
    codename: "expression.on.tags"
    arguments:
      expr: "stringValue == 'UNDEFINED'? Keep() : Remove()"
    tags:
      - "(0010,0010)" #PatientName
      - "(0010,0212)" #StrainDescription

Concatenate multiple tag values

Replace Study Description with a concatenation of Institution Name and Station Name:

- name: "Expression"
  codename: "expression.on.tags"
  arguments:
    expr: "Replace(getString(#Tag.InstitutionName) + '-' + getString(#Tag.StationName))"
  tags:
    - "(0008,1030)" #StudyDescription

Compute patient age

Calculate and set the patient’s age at the time of the exam:

- name: "Expression"
  codename: "expression.on.tags"
  arguments:
    expr: "ComputePatientAge()"
  tags:
    - "(0010,1010)" #PatientAge

Exclude instances conditionally

Exclude all instances that contain a name in the image (where Specimen Label In Image is set to YES):

  - name: "Expression"
    codename: "expression.on.tags"
    arguments:
      expr: "getString(#Tag.SpecimenLabelInImage) == 'YES' ? ExcludeInstance() : null"
    tags:
      - "(xxxx,xxxx)"

Replace DICOM Tag Values from an External API

Actions with API calls

This profile element uses a call to an API to replace the value of a tag or a group of tags defined by the user.

Another variant of this action regarding shifting dates using values retrieved from an external API is described in Shift Dates from API.

Parameters

Arguments

URL and Body Arguments

The URL and body may require values directly linked to the instance being transferred, such as the Patient ID.

A specific syntax allows this runtime injection. Parts evaluated at runtime must be enclosed in double brackets. The syntax uses Spring Expression Language (SpEL), with functions and constants defined similarly to Expressions.

URL examples:

http://example.com/{{getString(#Tag.PatientID)}}/endpoint
http://example.com/{{getString(#Tag.ClinicalTrialSponsorName)}}/patient/{{getString(#Tag.PatientID)}}/endpoint

{
  "patientId": "{{getString(#Tag.PatientID)}}",
  "project": "{{getString(#Tag.ClinicalTrialSponsorName)}}"
}

In the body, hence the JSON format, the expression must be enclosed in double quotes if the expected value is a String.

The expressions are evaluated against the original values of the instance, before any profile element modified it (for example getString(#Tag.PatientID) returns the Patient ID received by Karnak, not the pseudonymized one). An expression that evaluates to null is replaced by an empty string.

Response Caching

The responses of the API are cached by URL, body and authentication configuration, so that the same call is not repeated for every instance of the same patient. The cache lifetime is defined by the cache-api.ttl property of application.yml (15 minutes by default).

Examples

Example 1: Replace Patient ID with API response

The profile element below replaces the value of the Patient ID tag with the value retrieved from the url, it extracts the String value from the response at the specified path. Since it is not specified, the HTTP method is GET.

The authConfig argument contains the identifier of the Authentication Configuration used to authenticate the API call.

If an error occurs during the call, this transfer will be aborted. If the defaultValue was specified, it would have been used as the replacement value and the transfer would not have been blocked.

  - name: "Replace Patient ID from API call"
    codename: "action.replace.api"
    arguments:
      url: "http://example.com/{{getString(#Tag.PatientID)}}/endpoint"
      responsePath: "/_embedded/0/value"
      authConfig: "endpoint-auth-config"
    tags:
      - "(0010,0020)"

Example 2: POST request with body and default value

  - name: "Replace Patient Name with fallback"
    codename: "action.replace.api"
    arguments:
      url: "http://example.com/patients"
      method: "POST"
      body: '{"patientId": "{{getString(#Tag.PatientID)}}"}'
      responsePath: "/name"
      authConfig: "endpoint-auth-config"
      defaultValue: "ANONYMOUS"
    tags:
      - "(0010,0010)"

Remove Burned-in Annotations from DICOM Images

This page describes the profile elements available in Karnak for modifying DICOM image data to remove identifying information.

Overview

Karnak provides two main approaches to protect patient identity in DICOM images:

1. Defacing: Automated removal of facial features from CT images
2. Pixel Data Cleaning: User-defined masks to remove burned-in annotations and identifying information

Both methods ensure that visual identifying information is removed from images while preserving the diagnostic value of the data.

Defacing

Defacing automatically removes facial features from CT images to protect patient identity.

Supported Images

This profile can only be applied to images with Axial orientation in the following SOP Classes:

• 1.2.840.10008.5.1.4.1.1.2 - CT Image Storage
• 1.2.840.10008.5.1.4.1.1.2.1 - Enhanced CT Image Storage
• 1.2.840.10008.5.1.4.1.1.2.2 - Legacy Converted Enhanced CT Image Storage

Configuration

This profile element requires the following parameters:

Pixel Data Cleaning

Pixel data cleaning applies masks to DICOM images to remove identifying information burned into the pixels, such as patient or institution information. Masks can be defined manually per station name (see Masks Definition) or generated automatically by an external OCR service (see Automatic Pixel Data De-identification).

Condition for Automatic Application

This profile is automatically applied to the following SOP Classes:

• 1.2.840.10008.5.1.4.1.1.6.1 - Ultrasound Image Storage
• 1.2.840.10008.5.1.4.1.1.6.2 - Enhanced US Volume Storage
• 1.2.840.10008.5.1.4.1.1.7 - Secondary Capture Image Storage
• 1.2.840.10008.5.1.4.1.1.7.1 - Multiframe Single Bit Secondary Capture Image Storage
• 1.2.840.10008.5.1.4.1.1.7.2 - Multiframe Grayscale Byte Secondary Capture Image Storage
• 1.2.840.10008.5.1.4.1.1.7.3 - Multiframe Grayscale Word Secondary Capture Image Storage
• 1.2.840.10008.5.1.4.1.1.7.4 - Multiframe True Color Secondary Capture Image Storage
• 1.2.840.10008.5.1.4.1.1.3.1 - Ultrasound Multiframe Image Storage
• 1.2.840.10008.5.1.4.1.1.77.1.1 - VL Endoscopic Image Storage

Or if the tag Burned In Annotation (0028,0301) is set to "YES"

Configuration

This profile element requires the following parameters:

Using Conditions

The condition parameter allows you to apply cleaning selectively. For example, to exclude images from a specific machine that does not add burned-in annotations, you can use the following configuration:

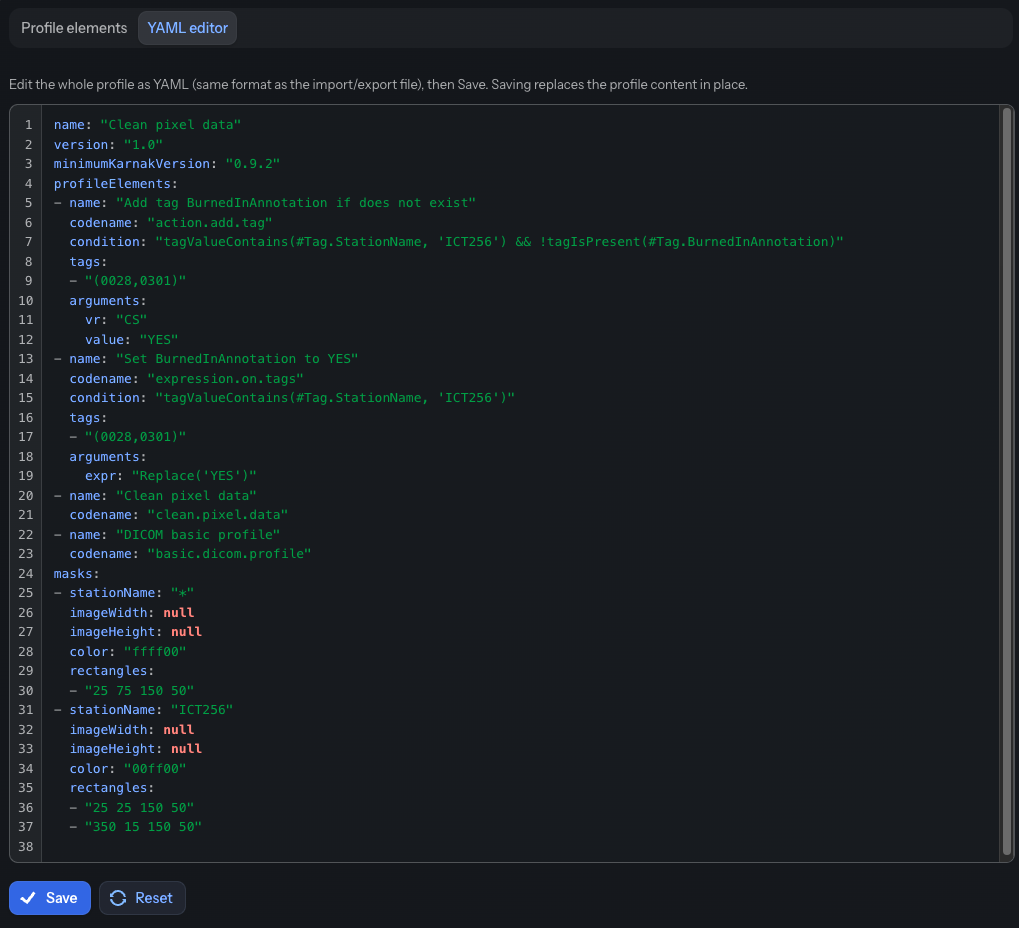

profileElements:
  - name: "Clean pixel data"
    codename: "clean.pixel.data"
    condition: "!tagValueContains(#Tag.StationName,'ICT256')"

Masks Definition

Masks define rectangular regions to be filled with a solid color, removing any identifying information in those areas.

Mask Parameters

Optional Parameters

Rectangle Definition

Each rectangle is defined by four values:

The coordinate system starts at (0, 0) in the upper-left corner of the image.

The diagram below illustrates a rectangle with parameters (25, 75, 150, 50):

Mask Selection Process

When processing a DICOM instance, Karnak selects the appropriate mask using the following algorithm:

1. Extract image attributes: Retrieve the Rows (0028,0010), Columns (0028,0011), and Station Name (0008,1010) values from the instance
2. Exact match: Search for a mask matching all three values (width, height, and station name)
3. Station match: If no exact match is found, ignore image dimensions and match only on station name
4. Default mask: If no station match is found, use the mask with stationName: "*"

Example Configuration

masks:
  - stationName: "*"
    color: "ffff00"
    rectangles:
      - "25 75 150 50"
  - stationName: "R2D2"
    color: "00ff00"
    rectangles:
      - "25 25 150 50"
      - "350 15 150 50"
  - stationName: "R2D2"
    imageWidth: 1024
    imageHeight: 1024
    color: "00ffff"
    rectangles:
      - "50 25 100 100"

Complete Example: Equipment-Specific Cleaning

This example demonstrates a profile that handles specific pixel data cleaning for equipment that burns patient information into the images and does not match the conditions for automatic application.

This profile below performs the following actions for images from a machine with Station Name containing “ICT256”:

1. Ensures the Burned In Annotation tag is present and set to “YES”
2. Applies pixel data cleaning with a station-specific mask
3. Applies the basic DICOM de-identification profile

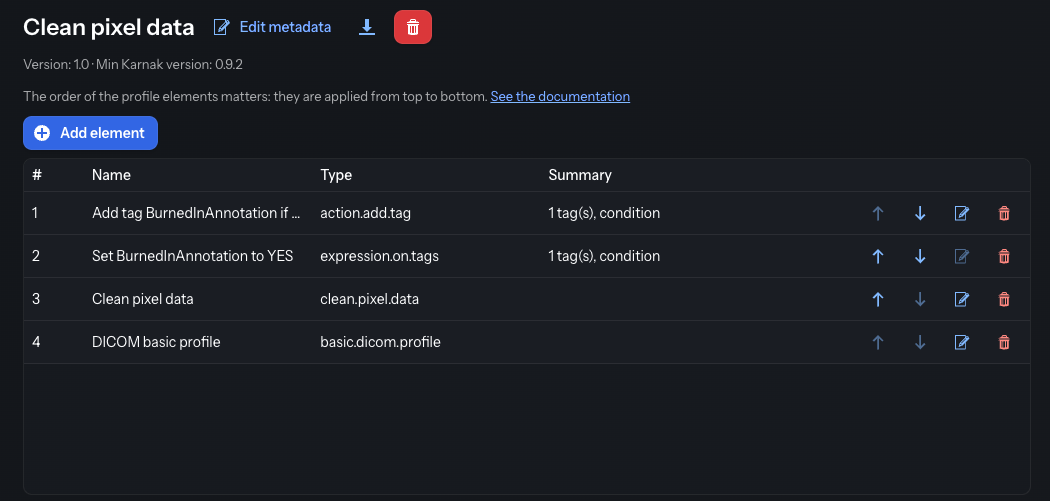

name: "Clean pixel data"
version: "1.0"
minimumKarnakVersion: "0.9.2"
defaultIssuerOfPatientID:
profileElements:
  - name: "Add tag BurnedInAnnotation if does not exist"
    codename: "action.add.tag"
    condition: "tagValueContains(#Tag.StationName, 'ICT256') && !tagIsPresent(#Tag.BurnedInAnnotation)"
    arguments:
      value: "YES"
    tags:
      - "(0028,0301)"

  - name: "Set BurnedInAnnotation to YES"
    codename: "expression.on.tags"
    condition: "tagValueContains(#Tag.StationName, 'ICT256')"
    arguments:
      expr: "Replace('YES')"
    tags:
      - "(0028,0301)"

  - name: "Clean pixel data"
    codename: "clean.pixel.data"

  - name: "DICOM basic profile"
    codename: "basic.dicom.profile"

masks:
  - stationName: "*"
    color: "ffff00"
    rectangles:
      - "25 75 150 50"
  - stationName: "ICT256"
    color: "00ff00"
    rectangles:
      - "25 25 150 50"
      - "350 15 150 50"

Automatic Pixel Data De-identification

Instead of defining mask rectangles by hand for each station name, Karnak can automatically detect and mask sensitive patient data that are burned into the DICOM pixel data (text overlays such as patient name, accession number, or dates). When this option is enabled, Karnak sends each eligible image to an external de-identification image API that runs OCR, detects sensitive text, and returns the mask areas to apply.

Automatic mask generation is an option of the Clean Pixel Data profile element.

How It Works

1. A destination uses a de-identification profile that contains a Clean Pixel Data element with automatic mask generation enabled.
2. For every eligible instance (the SOP Classes eligible for pixel data cleaning, or any image flagged with Burned In Annotation (0028,0301)), Karnak extracts the pixel data and a set of sensitive tag values and sends them to the external API.
3. The API returns one or more mask areas (rectangles, each with a color). Karnak draws them on the image before forwarding it to the destination.
4. If the API detects no sensitive data, no mask is applied and the image is forwarded unchanged. If the call fails, the instance is not forwarded (see Fail-closed Behavior).

The example below shows an ultrasound frame before and after automatic pixel de-identification: the burned-in patient identifiers are detected and masked while the diagnostic image content is preserved.

Before de-identification	After de-identification

Sensitive Tags Sent to the API

The values of the following tags are sent so the API can detect them in the image. No pixel data leaves Karnak beyond the single frame being analyzed.

AccessionNumber, InstitutionName, OperatorsName, PatientAge, PatientBirthDate, PatientID, PatientName, PatientSex, PerformingPhysicianName, PerformedProcedureStepID, ReferringPhysicianName, StudyDate.

Fail-closed Behavior

When automatic mask generation is enabled and the API is unreachable or returns an error, Karnak produces no mask and the instance is not forwarded. This prevents un-masked PHI from leaking to the destination if the service is down.

Enabling the Option in a Profile

Via the UI

1. Open the profile editor and add (or edit) a Clean Pixel Data element.
2. Enable Automatic masks generation.
3. Make sure the profile also contains the DICOM basic profile element.
4. Save and assign the profile to the destination’s de-identification project.

Via a YAML Profile

Set the automaticMasksGeneration argument to "true" on the clean.pixel.data element:

name: "Automatic De-identification Karnak Profile"
version: "1.0"
minimumKarnakVersion: "2.0.0"
profileElements:
  - name: "Clean pixel data"
    codename: "clean.pixel.data"
    arguments:
      automaticMasksGeneration: "true"
  - name: "DICOM basic profile"
    codename: "basic.dicom.profile"

Configuring the External API Endpoint

Karnak calls the de-identification image API at the URL configured by the OCR_URL environment variable (default http://localhost:8000). It maps to the ocr.url property in application.yml:

ocr:
  url: ${OCR_URL:http://localhost:8000}

The API contract is documented in the deidentification-api.yaml specification.

Deploying the External De-identification Service

The de-identification image API is a separate service. Deploy and run it so that it is reachable from Karnak at OCR_URL.

To deploy it alongside the standard installation:

1. Deploy the de-identification image API following its deployment guide.
2. Point Karnak to it by setting OCR_URL to the service base URL.
3. Restart Karnak so the new configuration is picked up.

Troubleshooting

Conditions in a De-identification Profile

Overview

A condition is an expression evaluated against a DICOM instance that returns a boolean value (true or false). Conditions are used in profiles to determine whether specific actions or transformations should be applied to DICOM elements based on the content of the instance.

Quick Reference

Constants

To improve readability and reduce errors, the following constants are available:

• #Tag - Retrieves DICOM tag identifiers by their standard names

  • Example: #Tag.PatientBirthDate → 0010,0030
  • Example: #Tag.StudyDescription → 0008,1030
  • Example: #Tag.Modality → 0008,0060

• #VR - Retrieves DICOM Value Representation types

  • Example: #VR.LO → Long String
  • Example: #VR.DA → Date
  • Example: #VR.PN → Person Name

Using these constants is recommended over hardcoded tag values to make profiles more maintainable and self-documenting.

Available Functions

All utility functions are detailed below with their parameters, return types, and usage examples.

tagValueIsPresent

tagValueIsPresent(int tag, String value) or tagValueIsPresent(String tag, String value)

This function will retrieve the tag value of the DICOM and check if the value parameter is the same as the tag value.

//Check if the study description is equals to "755523-st222-GE"
tagValueIsPresent(#Tag.StudyDescription, "755523-st222-GE")
tagValueIsPresent("0008,1030", "755523-st222-GE")

//Check if the study description is not equals to "755523-st222-GE"
!tagValueIsPresent(#Tag.StudyDescription, "755523-st222-GE")
!tagValueIsPresent("0008,1030", "755523-st222-GE")

tagValueContains

tagValueContains(int tag, String value) or tagValueContains(String tag, String value)

This function will retrieve the tag value of the DICOM and check if the value parameter appears in the tag value.

//Check if the study description contains "st222"
tagValueContains(#Tag.StudyDescription, "st222")
tagValueContains("0008,1030", "st222")

//Check if the study description does not contain "st222"
!tagValueContains(#Tag.StudyDescription, "st222")
!tagValueContains("0008,1030", "st222")

tagValueBeginsWith

tagValueBeginsWith(int tag, String value) or tagValueBeginsWith(String tag, String value)

This function will retrieve the tag value of the DICOM and check if the tag value begins with the parameter value

//Check if the study description begins with "755523"
tagValueBeginsWith(#Tag.StudyDescription, "755523")
tagValueBeginsWith("0008,1030", "755523")

//Check if the study description does not begin with "755523"
!tagValueBeginsWith(#Tag.StudyDescription, "755523")
!tagValueBeginsWith("0008,1030", "755523")

tagValueEndsWith

tagValueEndsWith(int tag, String value) or tagValueEndsWith(String tag, String value)

This function will retrieve the tag value of the DICOM and check if the tag value ends with the parameter value

//Check if the study description ends with "GE"
tagValueEndsWith(#Tag.StudyDescription, "GE")
tagValueEndsWith("0008,1030", "GE")

//Check if the study description does not end with "GE"
!tagValueEndsWith(#Tag.StudyDescription, "GE")
!tagValueEndsWith("0008,1030", "GE")

tagIsPresent

tagIsPresent(int tag) or tagIsPresent(String tag)

This function will check if the tag is present in the DICOM instance.

//Check if the tag study description is present in the DICOM file
tagIsPresent(#Tag.StudyDescription)
tagIsPresent("0008,1030")

//Check if the tag study description is not present in the DICOM file
!tagIsPresent(#Tag.StudyDescription)
!tagIsPresent("0008,1030")

Tags Inside Sequences

A condition is evaluated for each visited attribute, including the attributes nested in the items of a sequence. The tag given to a function is looked up from the dataset being visited outwards: inside a sequence item, the item’s own value is used when the item holds the tag, otherwise the value of the enclosing dataset (up to the top level). A condition on a study-level tag such as Modality therefore holds at every level, while a condition on a tag that only exists inside the items of a sequence is true only while those items are visited.

Combining Conditions

Multiple conditions can be combined using logical operators.

&& corresponds to the AND logical operator

|| corresponds to the OR logical operator

//Check if the tag study description ends with "GE" and if the station name is "CT1234"
tagValueEndsWith(#Tag.StudyDescription, "GE") && tagValueContains(#Tag.StationName, "CT1234")

//Check if the tag study description ends with "GE" or if the station name is "CT1234"
tagValueEndsWith(#Tag.StudyDescription, "GE") || tagValueContains(#Tag.StationName, "CT1234")

How Karnak De-identifies DICOM Studies

This page provides technical details about how Karnak performs DICOM de-identification, including the algorithms used for UID generation, date shifting, and pseudonymization.

Overview

Karnak is a gateway that receives DICOM files and forwards them to one or multiple destinations using DICOM or DICOMweb protocols. Each destination can be linked to a project that defines the de-identification method and a secret used to generate deterministic values.

Basic Profile

The Basic Profile for de-identifying DICOM objects is provided by the DICOM standard. This profile defines an exhaustive list of DICOM tags and their related actions for proper de-identification.

De-identification Actions

Five different actions are defined in the DICOM standard:

Multiple Actions for IOD Conformance

The DICOM type is often dependent on the Information Object Definition (IOD) of the instance. To avoid DICOM corruption, multiple actions can be defined for a tag, ensuring that destructive actions like REMOVE won’t be applied on Type 1 or Type 2 attributes.

Combined actions:

Action Selection:

Karnak loads the SOPs and attributes as specified in the DICOM Standard. Based on the tag’s type in the current instance, the proper action is set and applied.

Examples of action resolution:

• Z/D, X/D, X/Z/D → apply action D
• X/Z → apply action Z
• X/Z/U, X/Z/U* → apply action U

Action D: Replace with Dummy Value

The action D replaces the tag value with a dummy one that is consistent with the Value Representation (VR) of the tag.

Default Values by VR

Karnak uses these default values based on the VR when no specific dummy value is defined:

Date Generation

For date and time VRs (AS, DA, DT, TM), the shiftRange() function generates a random value within configurable limits:

• Default maximum days: 365
• Default maximum seconds: 86400

Action U: Generate a New UID

For each U action, Karnak hashes the input value using a one-way function to ensure it’s not possible to revert to the original UID. The function hashes the input UID and generates a new deterministic UID from the result.

Context and Project Secrets

A DICOM study may be de-identified multiple times using different methods. Karnak ensures deterministic UID generation to maintain data quality and usability.

Requirements:

1. A project must be created and associated with the destination
2. The project defines a de-identification method and a secret
3. The project’s secret is used as the key for the HMAC algorithm

Project Secret Format

Users can provide their own secret, but it must be exactly 16 bytes, written as 32 hexadecimal characters.

Hash Function

The algorithm used is “Message Authentication Code” (MAC). Karnak uses MAC as a one-way function rather than for message authentication.

According to the Java Mac class documentation:

A MAC provides a way to check the integrity of information transmitted over or stored in an unreliable medium, based on a secret key. Typically, message authentication codes are used between two parties that share a secret key in order to validate information transmitted between these parties.

A MAC mechanism that is based on cryptographic hash functions is referred to as HMAC. HMAC can be used with any cryptographic hash function, e.g., SHA256 or SHA384, in combination with a secret shared key. HMAC is specified in RFC 2104.

Karnak’s HMAC Configuration:

• Hash function: SHA256
• Secret key: Project’s secret (16 bytes)

UID Generation Process

Karnak generates a new DICOM UID that starts with the OID root "2.25" followed by a decimal representation of a UUID derived from the HMAC hash.

The value after “2.25.” is the straight decimal encoding of the UUID as an integer. It must be a direct decimal encoding of the single integer, all 128 bits. See How do you create an OID?

UUID Generation Algorithm

The generated UUID uses the first 16 bytes (128 bits) from the hash value as a UUID type 4 with variant 1.

Pseudocode to ensure correct UUID type and variant:

// Version
uuid[6] &= 0x0F
uuid[6] |= 0x40

// Variant
uuid[8] &= 0x3F
uuid[8] |= 0x80

Final UID format:

uuid = “2.25.” + HashedValue[0:16].toPositiveDecimal()

Shift Date: Generate a Random Date

Karnak implements randomized date shifting that is consistent per patient and project, ensuring data consistency across all instances for the same patient.

Algorithm

The random shift uses the HMAC function (defined above) with a configurable range of days or seconds.

Default values:

• Minimum: 0 (if not specified)
• Maximum: User-defined

Process:

1. The Patient ID is hashed using the project’s secret
2. The hash is converted to a numeric value within the specified range
3. The same shift is applied to all date fields for that patient

Pseudocode:

scaleHash(PatientID, scaledMin, scaledMax):
    patientHashed = hmac.hash(PatientID)
    scale = scaledMax - scaledMin

    shift = (patientHashed[0:6].toPositiveDecimal() * scale) + scaledMin

Pseudonymization

This section explains how Karnak handles Patient ID generation to prevent data leakage across different de-identification methods.

The Problem

A patient participating in multiple research projects may encounter different de-identification methods. Most patient identifying information is contained in the Patient Module.

Risk scenario:

If the same pseudonym is used across projects with different de-identification profiles, data can be leaked when studies are reconciled.

Example: Data Leakage Risk

In this example, a patient’s study falls within the scope of two different projects:

• Project 1: Removes the patient birthdate
• Project 2: Keeps the patient birthdate

If the patient pseudonym is used as patient identification and the data is reconciled, the birthdate will be leaked.

flowchart TB
    patient["Patient's original<br>DICOM study<br><i>(contains birthdate)</i>"]
    gateway["Karnak<br>Gateway"]:::karnak
    table[("Pseudonym<br>mapping table<br>patient &harr; pseudonym")]
    p1["<b>Project 1</b><br>Profile:<br><b>remove</b> birthdate"]
    p2["<b>Project 2</b><br>Profile:<br><b>keep</b> birthdate"]
    s1["De-identified study<br>birthdate <b>removed</b>"]
    s2["De-identified study<br>birthdate <b>kept</b>"]
    pm["<b>Patient Module</b><br>the <b>same pseudonym</b> identifies the<br>patient in both studies &rarr; the kept<br>birthdate leaks when they are reconciled"]:::leak

    patient -->|"(1) DICOM send"| gateway
    gateway <-->|"(2) Look up the<br>patient's pseudonym"| table
    gateway -->|"(3) Route to Project 1"| p1
    gateway -->|"(5) Route to Project 2"| p2
    p1 -->|"(4) Apply Profile 1"| s1
    p2 -->|"(6) Apply Profile 2"| s2
    s1 -->|"Identification"| pm
    s2 -->|"Identification"| pm

    classDef karnak fill:#f9a825,stroke:#e08e00,color:#000;
    classDef leak fill:#ffe0e0,stroke:#e03e3e,color:#000;

Because both studies are identified by the same pseudonym, reconciling them re-associates the kept birthdate (Project 2) with the patient whose birthdate Project 1 removed.

The Solution: Project-Specific Patient IDs

Karnak generates a unique Patient ID based on the pseudonym and project-specific characteristics. This prevents reconciliation across projects and eliminates data leakage.

flowchart TB
    patient["Patient's original<br>DICOM study<br><i>(contains birthdate)</i>"]
    gateway["Karnak<br>Gateway"]:::karnak
    table[("Pseudonym<br>mapping table<br>patient &harr; pseudonym")]
    p1["<b>Project 1</b><br>Profile:<br><b>remove</b> birthdate"]
    p2["<b>Project 2</b><br>Profile:<br><b>keep</b> birthdate"]
    id1["Patient ID<br>specific to Project 1"]:::idbox
    id2["Patient ID<br>specific to Project 2"]:::idbox
    s1["De-identified study<br>birthdate <b>removed</b>"]
    s2["De-identified study<br>birthdate <b>kept</b>"]
    pm1["<b>Patient Module</b><br>Patient ID unique to Project 1<br>&rarr; cannot be reconciled"]:::safe
    pm2["<b>Patient Module</b><br>Patient ID unique to Project 2<br>&rarr; cannot be reconciled"]:::safe

    patient -->|"(1) DICOM send"| gateway
    gateway <-->|"(2) Look up the<br>patient's pseudonym"| table
    gateway -->|"(3) Route to Project 1"| p1
    gateway -->|"(6) Route to Project 2"| p2
    p1 -->|"(4) Derive a project-<br>specific Patient ID"| id1
    p2 -->|"(7) Derive a project-<br>specific Patient ID"| id2
    id1 -->|"(5) Apply Profile 1"| s1
    id2 -->|"(8) Apply Profile 2"| s2
    s1 -->|"Identification"| pm1
    s2 -->|"Identification"| pm2

    classDef karnak fill:#f9a825,stroke:#e08e00,color:#000;
    classDef safe fill:#e0f5e0,stroke:#2ab218,color:#000;
    classDef idbox fill:#eef3ff,stroke:#5b7cc2,color:#000;

Each project derives its own Patient ID from the pseudonym and the project’s secret, so the two studies can no longer be reconciled — the kept birthdate stays isolated to Project 2.

PatientID Generation

The de-identified Patient ID is generated as follows:

1. The patient’s pseudonym is retrieved from an external service or mapping table
2. The pseudonym is hashed using the HMAC function and the project’s secret
3. The Patient ID is set to the first 16 bytes of the hashed pseudonym (in hexadecimal format)

Patient Name:

Once the profile has been applied, the Patient’s Name is always set to the pseudonym.

Attributes Added by Karnak

Karnak automatically sets certain attributes during de-identification to maintain compliance and traceability.

SOP Common Module

The following attributes are set in the SOP Common Module:

Patient Module

The following attributes are set in the Patient Module:

De-identification Method Code Sequence

Each item holds a code from the DCM coding scheme. Only the profile elements matching a DICOM de-identification option add an item (each code appears once):

Clinical Trial Subject Module

The following attributes are set in the Clinical Trial Subject Module:

Forward Nodes: DICOM Gateway Configuration

The Gateway page allows you to configure Forward Nodes in Karnak. A Forward Node represents a DICOM Application Entity (AE) that receives DICOM instances and routes them to one or more destinations. See How Karnak works for the deployment workflow and the pipeline each instance goes through.

Forward Node

This page lists all the forward nodes configured in Karnak and allows you to create, edit, and delete them.

1. Create a Forward Node

Click the New forward node button. A popup will appear:

1. Enter a unique value in the Forward AETitle field. AE Titles must not exceed 16 characters and cannot contain control characters or a backslash.
2. Click the Add button

The new forward node appears in the list and is automatically selected. Optionally, add a description and save your changes.

2. Create a group

When the list grows, you can organize forward nodes into groups (a single level of folders) to keep related nodes together:

• Click Add group to create a new group and give it a name.
• Drag a forward node onto a group to assign it to that group.
• Right-click a group to Rename group or Delete group; deleting a group only removes the folder — the nodes it contained move back out, they are not deleted.
• Right-click a node and choose Remove from group to take it out of its group.

Groups are purely organizational; they do not change how forward nodes behave. The same grouping is available for Projects and Profiles.

3. Forward Node List

All configured forward nodes and groups are displayed in the left panel.

Select a forward node from the list to view and manage its configuration in the right panel.

4. Forward Node Parameters

In the details view, you can modify:

• Forward AETitle: The Application Entity Title of the forward node
• Description: An optional description to help identify the node’s purpose

Click the Save button to apply your changes.

5. Sources and Destinations

Each forward node can be configured with:

• Sources: Control which DICOM nodes are authorized to send data to this forward node
• Destinations: Define where received DICOM instances should be forwarded

5.1 Navigation

Use the tabs to switch between the Destinations and Sources views for the selected forward node.

5.2 Filtering

Destinations tab: a free-text filter matching a destination’s description, AE Title, hostname, port, URL, headers and notification settings.

Sources tab: a free-text filter matching a source’s description, AE Title and hostname.

5.3 List

All destinations or sources associated with the forward node are displayed here.

Click any item in the list (or a New button) to open its configuration form. The form replaces the list panel in place; click Cancel to return to the list.

5.4 Actions

The available action buttons depend on the active tab.

Destinations tab:

Create a new destination using either the DICOM or DICOM WEB (STOW) protocol. See the Destinations page for detailed configuration instructions. The portable distribution shows an additional LOCAL button that creates a destination storing the instances in its local DICOM folder.

Sources tab:

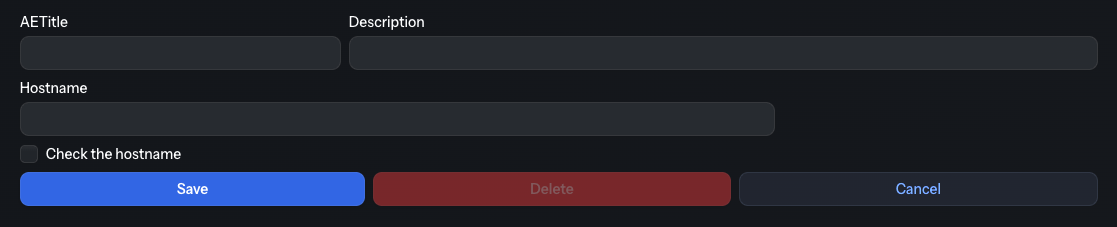

Create a new source to control which DICOM nodes can send data to this forward node. See the Sources page for detailed configuration instructions.

6. Forward Node Actions

Three action buttons are available:
